When roof panels won't fit

#1

Post by openspaceman »

Is there a good reason or planning consideration in UK where the south facing roof is hipped why the framework for the panels cannot be extended beyond the hip . I can see wind loading would be a potential problem.
Morso S11
FIT
16 Sharp PV panels facing WSW 4kW
Solarmax 4200S inverter
Non FIT
3 Canadian solar DC coupled 1.75kW facing SSE
Storage
Growatt SPA3000TL BL inverter ac coupled
Growatt GBLI6532 6.5kWh lithium phosphate battery
User avatar
nowty
Posts: 5732
Joined: Mon May 31, 2021 2:36 pm
Location: South Coast

Re: When roof panels won't fit

#2

Post by nowty »

From memory I think there is a 200mm rule so it probably can slightly. I have a slight overhang over the edge of my kitchen extension roof were its advantageous to minimise shading.

Triangular panels are also available to help with this problem of hipped roofs.
16.9kW PV > 109MWh generated
Ripple 6.6kW Wind + 4.5kW PV > 25MWh generated
5 Other RE Coop's
105kWh EV storage
60kWh Home battery storage
40kWh Thermal storage
GSHP + A2A HP's
Rain water use > 510 m3
rogeriko
Posts: 30
Joined: Sat Jun 12, 2021 10:57 pm

Re: When roof panels won't fit

#3

Post by rogeriko »

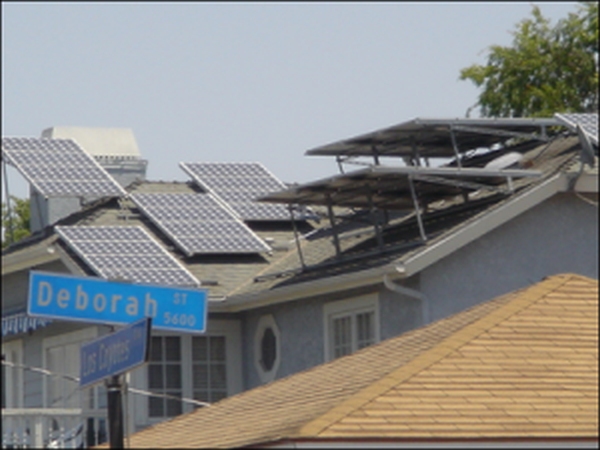

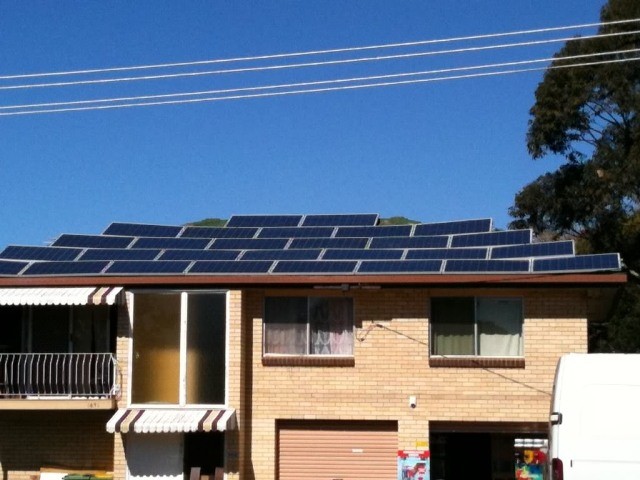

Plenty of room...
Attachments
