#31

Post by Tinbum »

Fintray wrote: Mon Nov 22, 2021 3:08 pm Would it be possible to remove the electronic control section of the pump from the body and just run some cabling to a suitably dry position?
You could try spraying conformal coating over the electronics.
85no 58mm solar thermal tubes, 28.5Kw PV, 3x Sunny Island 5048, 2795 Ah (135kWh) (c20) Rolls batteries 48v, 8kWh Growatt storage, 22 x US3000C Pylontech, Sofar ME3000's, Brosley wood burner and 250lt DHW
User avatar
Stinsy
Posts: 3201
Joined: Wed Jun 02, 2021 1:09 pm

Re: My GSHP trips 32A MCB

#32

Post by Stinsy »

Tinbum wrote: Mon Nov 22, 2021 4:14 pm
Fintray wrote: Mon Nov 22, 2021 3:08 pm Would it be possible to remove the electronic control section of the pump from the body and just run some cabling to a suitably dry position?
You could try spraying conformal coating over the electronics.
I'm guessing the manufacturer of the pump intended airflow to keep the electronics cool.
12x 340W JA Solar panels (4.08kWp)
3x 380W JA Solar panels (1.14kWp)
5x 2.4kWh Pylontech batteries (12kWh)
LuxPower inverter/charger

(Artist formally known as ******, well it should be obvious enough to those for whom such things are important.)
User avatar
Stinsy
Posts: 3201
Joined: Wed Jun 02, 2021 1:09 pm

Re: My GSHP trips 32A MCB

#33

Post by Stinsy »

nowty wrote: Mon Nov 22, 2021 4:05 pm
Stinsy wrote: Mon Nov 22, 2021 3:38 pm BTW I'd recommend a 10kΩ resister rather than a 100Ω. It is a better test of the RCD pulling 230mA rather than 2.3A!
I think you mean a 1kΩ resister, but anyway the 100Ω resister was the only one I could find but I did have a 1A fuse in the plug it was running from, just in case. ;)

I did say it was a nuclear test of it ! :twisted:
You're right of course...

Anyway you've proved current leaking to earth isn't your problem. Something is drawing too much current, and I think you've eliminated the compressor starting up (trip doesn't coincide) so one of your circulation pumps overheating seems most likely...
12x 340W JA Solar panels (4.08kWp)
3x 380W JA Solar panels (1.14kWp)
5x 2.4kWh Pylontech batteries (12kWh)
LuxPower inverter/charger

(Artist formally known as ******, well it should be obvious enough to those for whom such things are important.)
User avatar
nowty
Posts: 6007
Joined: Mon May 31, 2021 2:36 pm
Location: South Coast

Re: My GSHP trips 32A MCB

#34

Post by nowty »

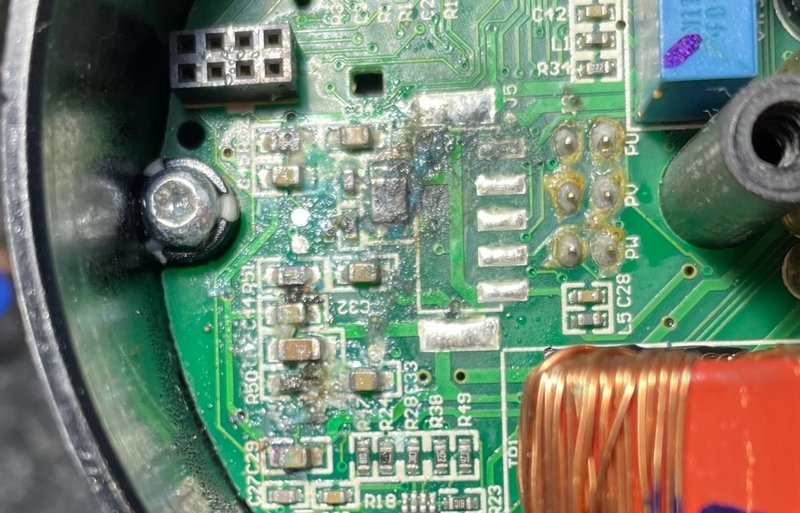

Took the failed water pump apart, part of circuit board burnt out.

18.7kW PV > 109MWh generated
Ripple 6.6kW Wind + 4.5kW PV > 30MWh generated
6 Other RE Coop's
105kWh EV storage
60kWh Home battery storage
40kWh Thermal storage
GSHP + A2A HP's
Rain water use > 520 m3
spread-tee
Posts: 649
Joined: Mon May 31, 2021 7:16 pm
Location: ville of spiky things

Re: My GSHP trips 32A MCB

#35

Post by spread-tee »

Cool, it's nice to find a reason for those faults, mind you a short capable of knocking out a 63A MCB causes quite a big splash, surprised not to see a bit more splatter around there, maybe the cinders are the other side of the board?

Desp
Blah blah blah
User avatar
nowty
Posts: 6007
Joined: Mon May 31, 2021 2:36 pm
Location: South Coast

Re: My GSHP trips 32A MCB

#36

Post by nowty »

Tinbum wrote: Mon Nov 22, 2021 4:14 pm You could try spraying conformal coating over the electronics.
Sounds like a good idea, plus I could stash a few small silica gel packs in as I have bag of them already.

And probably I should individually fuse each of them with 1 or 3 amp fuses as they are less than 50w max with a soft start.
18.7kW PV > 109MWh generated
Ripple 6.6kW Wind + 4.5kW PV > 30MWh generated
6 Other RE Coop's
105kWh EV storage
60kWh Home battery storage
40kWh Thermal storage
GSHP + A2A HP's
Rain water use > 520 m3
User avatar
Joeboy
Posts: 8490
Joined: Mon May 31, 2021 4:22 pm
Location: Inverurie

Re: My GSHP trips 32A MCB

#37

Post by Joeboy »

nowty wrote: Mon Nov 22, 2021 5:18 pm Took the failed water pump apart, part of circuit board burnt out.

Moisture to the left of L5? Looking forward to seeing the workaround. Keep you busy until the big things cranking! :)
15kW PV SE, VI, HM, EN
42kWh LFPO4 storage
7kW ASHP
200ltr HWT.
73kWh HI5
Deep insulation, air leak ct'd home
WBSx2
Low energy bulbs
Veg patches & fruit trees
User avatar
nowty
Posts: 6007
Joined: Mon May 31, 2021 2:36 pm
Location: South Coast

Re: My GSHP trips 32A MCB

#38

Post by nowty »

Joeboy wrote: Mon Nov 22, 2021 9:14 pm
nowty wrote: Mon Nov 22, 2021 5:18 pm Took the failed water pump apart, part of circuit board burnt out.

Moisture to the left of L5? Looking forward to seeing the workaround. Keep you busy until the big things cranking! :)

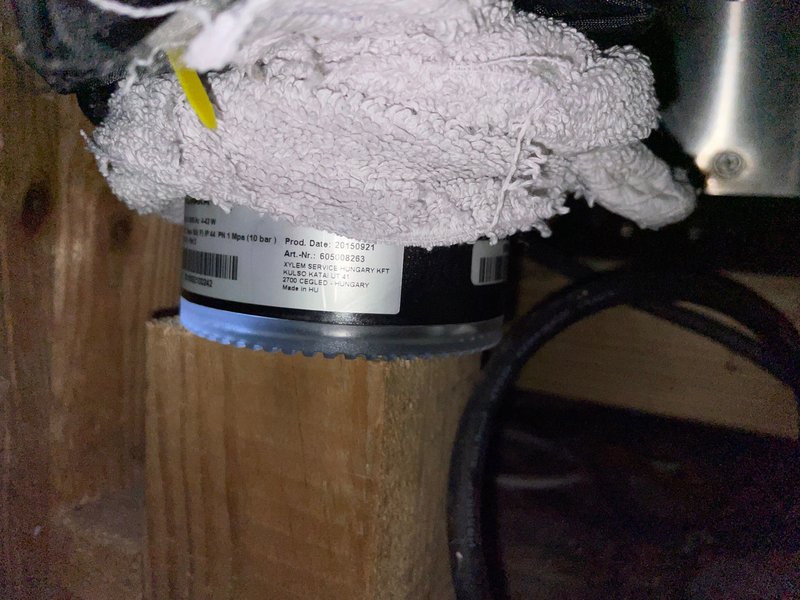

The workaround is a low tech towel bandana to soak up excess condensation. :D


I'm just glad the heat pump ain't fecked, its been working for 50+ hrs now without issue and the outside temperature is plummeting to near zero but the lounge is still,


And the gas boiler is still off.
18.7kW PV > 109MWh generated
Ripple 6.6kW Wind + 4.5kW PV > 30MWh generated
6 Other RE Coop's
105kWh EV storage
60kWh Home battery storage
40kWh Thermal storage
GSHP + A2A HP's
Rain water use > 520 m3
User avatar
Joeboy
Posts: 8490
Joined: Mon May 31, 2021 4:22 pm
Location: Inverurie

Re: My GSHP trips 32A MCB

#39

Post by Joeboy »

nowty wrote: Mon Nov 22, 2021 11:57 pm
Joeboy wrote: Mon Nov 22, 2021 9:14 pm
nowty wrote: Mon Nov 22, 2021 5:18 pm Took the failed water pump apart, part of circuit board burnt out.

Moisture to the left of L5? Looking forward to seeing the workaround. Keep you busy until the big things cranking! :)
The workaround is a low tech towel bandana to soak up excess condensation. :D


I'm just glad the heat pump ain't fecked, its been working for 50+ hrs now without issue and the outside temperature is plummeting to near zero but the lounge is still,


And the gas boiler is still off.
Nothing wrong with low tech. God made tupperware tubs and even yoghurt pots along with silica gel bags for just such applications! As you say the main thing is 'Gas to the off position'. :) I wonder how far they will crack on today at the site? Can almost hear the Welsh minister for energy to the DNO. Right Boyo, here's how its going to be...
15kW PV SE, VI, HM, EN
42kWh LFPO4 storage
7kW ASHP
200ltr HWT.
73kWh HI5
Deep insulation, air leak ct'd home
WBSx2
Low energy bulbs
Veg patches & fruit trees
User avatar
nowty
Posts: 6007
Joined: Mon May 31, 2021 2:36 pm
Location: South Coast

Re: My GSHP trips 32A MCB

#40

Post by nowty »

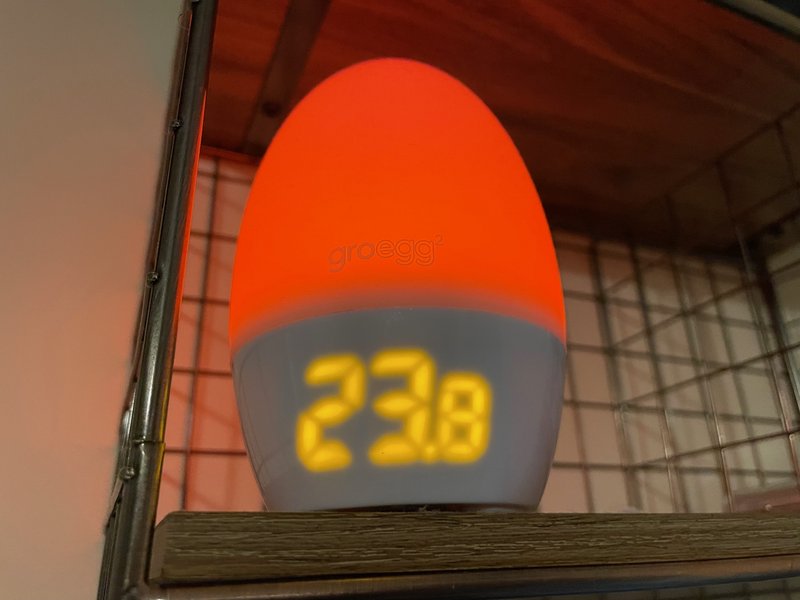

Just thought I would share these pics I took today as its pretty cold out there and yet its toasty inside my house heated with the heat pump via radiators.
Heat pumps are pretty amazing things and will be running with a COP of about 3.
2kW of leccy in and 6kW of heat out, even using freezing cold water.

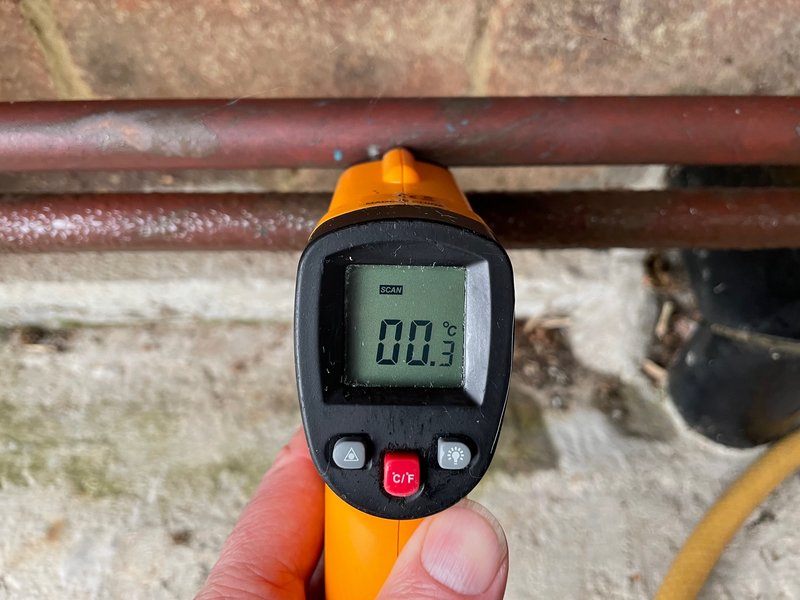

Temp of the coolant flow from the evaporator in the heat pump, almost zero degrees and you can see all the condensation on the lower pipe.

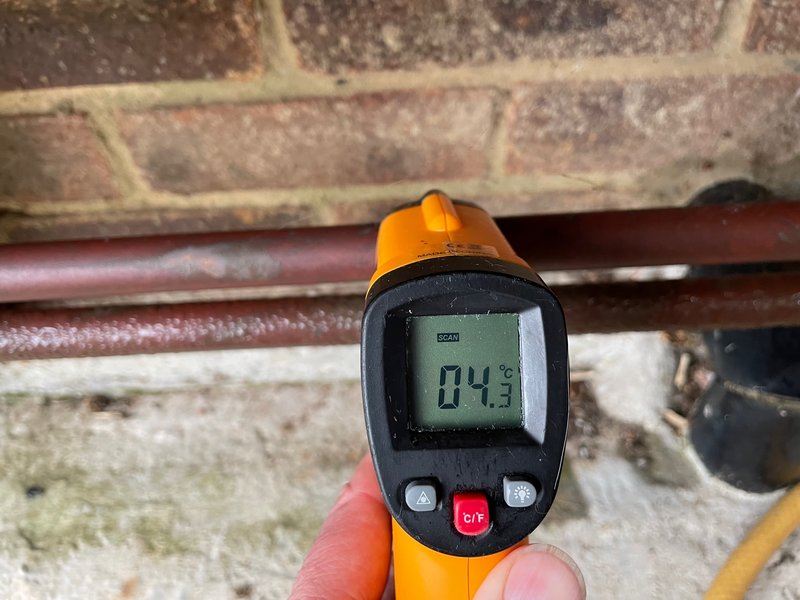

Temp of the coolant after its taken its circa 30 second trip though coils of copper microbore beneath the water.
