immersun repair -no.3
-
- Posts: 6
- Joined: Tue May 07, 2024 3:49 pm
Re: immersun repair -no.3
I am sorry to resurrect such an old post. Please could one of you kind people help me, I have an immersun t1050 and something has gone bang and it has stopped working, the trouble is though we don’t know what the component is that went bang, it is meant to be in U5 slot I think.
Thank you all.
Thank you all.
Re: immersun repair -no.3
That's not a problem.Teamplayer wrote: ↑Tue May 07, 2024 4:05 pm I am sorry to resurrect such an old post. Please could one of you kind people help me, I have an immersun t1050 and something has gone bang and it has stopped working, the trouble is though we don’t know what the component is that went bang, it is meant to be in U5 slot I think.
Thank you all.
Their can be a number of things wrong with them and you really need some knowledge in where to look and test. You are dealing with dangerous voltages when testing.
85no 58mm solar thermal tubes, 28.5Kw PV, 3x Sunny Island 5048, 2795 Ah (135kWh) (c20) Rolls batteries 48v, 8kWh Growatt storage, 22 x US3000C Pylontech, Sofar ME3000's, Brosley wood burner and 250lt DHW
-
- Posts: 6
- Joined: Tue May 07, 2024 3:49 pm
Re: immersun repair -no.3
I am not trying to fix it, I have sent it to an electrician but who repairs pcb’s but due to the component going bang he doesn’t know what it is only it goes in slot u2 Thank you
Re: immersun repair -no.3
Slot u2 doesn't ring any bells - any chance of a picture?
450W hydro-electric
5110W pv
1.3kw Wt2 - not yet producing
6kWh lead acid - maybe 1kwh useable
LiMnCo battery made from 2nd hand hybrid car modules 3.6kwh nominal 24v.
300lt hot water tank and two storage heaters
ASHP Grant Aerona 3 10.5kw and UFH
5110W pv
1.3kw Wt2 - not yet producing
6kWh lead acid - maybe 1kwh useable
LiMnCo battery made from 2nd hand hybrid car modules 3.6kwh nominal 24v.
300lt hot water tank and two storage heaters
ASHP Grant Aerona 3 10.5kw and UFH
Re: immersun repair -no.3
U2 on one I have is a 6 pad semiconductor with a marking 3005. Their are different versions of the pcb though- this is from an early version. U5 is the same device.Teamplayer wrote: ↑Tue May 07, 2024 7:28 pm I am not trying to fix it, I have sent it to an electrician but who repairs pcb’s but due to the component going bang he doesn’t know what it is only it goes in slot u2 Thank you
85no 58mm solar thermal tubes, 28.5Kw PV, 3x Sunny Island 5048, 2795 Ah (135kWh) (c20) Rolls batteries 48v, 8kWh Growatt storage, 22 x US3000C Pylontech, Sofar ME3000's, Brosley wood burner and 250lt DHW
Re: immersun repair -no.3
If you search for immersun, there was an immersun repair 2 which listed several parts, but the U1 (and U2 i think) were gate drivers with a lot more than 6 legs, and the 6 leg devices were Q-numbered dual fets (the part no.s were listed in that thread.
But thinking about it my immersun repairs were on various MK2 immersuns (T1060) and the T1050 is a MK1.
I do have a MK1 here which might get fixed one day, but bizzarely, i can find U1, U3 through to U10, but no sign of U2, so i think a picture might still be needed.
But thinking about it my immersun repairs were on various MK2 immersuns (T1060) and the T1050 is a MK1.
I do have a MK1 here which might get fixed one day, but bizzarely, i can find U1, U3 through to U10, but no sign of U2, so i think a picture might still be needed.
450W hydro-electric
5110W pv
1.3kw Wt2 - not yet producing
6kWh lead acid - maybe 1kwh useable
LiMnCo battery made from 2nd hand hybrid car modules 3.6kwh nominal 24v.
300lt hot water tank and two storage heaters
ASHP Grant Aerona 3 10.5kw and UFH
5110W pv
1.3kw Wt2 - not yet producing
6kWh lead acid - maybe 1kwh useable
LiMnCo battery made from 2nd hand hybrid car modules 3.6kwh nominal 24v.
300lt hot water tank and two storage heaters
ASHP Grant Aerona 3 10.5kw and UFH
Re: immersun repair -no.3
Found it!

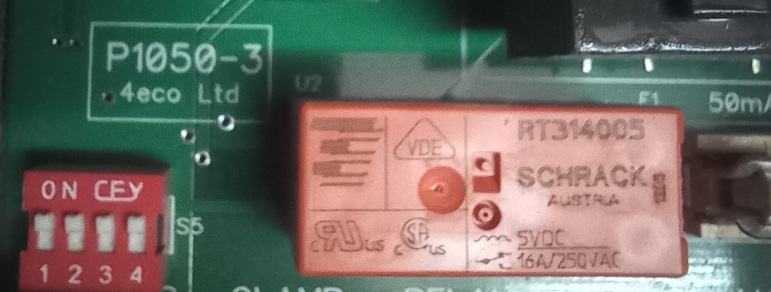

I was foxed by the fact that every other U was a semiconductor , but U2 is a relay (DPDT 5v coil 16A)![Whako :whako:](./images/smilies/Whako.gif)
I was foxed by the fact that every other U was a semiconductor , but U2 is a relay (DPDT 5v coil 16A)
![Whako :whako:](./images/smilies/Whako.gif)
