spread-tee wrote: Fri Apr 15, 2022 8:23 pm It's like being in a vacuum flask, no convection and hardly any conduction to worry about, so if you can stop the radiative energy then all the heat leaks out into space which has an ambient temp of about 5 deg K IIRC.
Desp
I understand the "no convection," but it's not really obvious how a few (or multiple) reflecting layers are going to stop all that radiated heat.
With no convection possible at all, it must depend on the efficiency of the reflective surfaces and attrition!
Surface 1 reflects 99.9%. Surface 2 receives 0.1% radiated from the back of #1, reflects 99.9% and passes 0.01% (0.00001 of the original?) on to the next layer. Maybe it is that simple.
Presumably the 6 Kelvins is as low as it is worth trying to achieve if deep space is 5K anyway. How would you use any active cooling to get below it? Unless you could somehow transport the energy to a radiator to beam it off into space, whereupon the 5K ambient would warm it back up anyway!
A
2.0 kW/4.62 MWh pa in Ripples, 4.5 kWp W-facing pv, 9.5 kWh batt
30 solar thermal tubes, 2MWh pa in Stockport, plus Congleton and Kinlochbervie Hydros,
Most travel by bike, walking or bus/train. Veg, fruit - and Bees!
spread-tee
Posts: 602
Joined: Mon May 31, 2021 7:16 pm
Location: ville of spiky things

Re: James Webb solar panels deploy early

#42

Post by spread-tee »

I think that is how it works, an Aluminised surface in a reflecting scope can easily reflect 88% of the radiation that hits it, in visible light that is, so if you have 7 layers as the Webb does of I think it is a gold reflective layer then you should be able to reflect almost all of the energy beaming in from the Sun. I don't know how they deal with all the different wavelengths though. Maybe as the scope is working in the IR the shorter wavelengths don't interfere or heat the sensors so much??

Desp
Blah blah blah
Andy
Posts: 506
Joined: Sun Aug 29, 2021 12:16 pm

Re: James Webb solar panels deploy early

#43

Post by Andy »

AE-NMidlands wrote: Fri Apr 15, 2022 8:48 pm
spread-tee wrote: Fri Apr 15, 2022 8:23 pm It's like being in a vacuum flask, no convection and hardly any conduction to worry about, so if you can stop the radiative energy then all the heat leaks out into space which has an ambient temp of about 5 deg K IIRC.
Desp
I understand the "no convection," but it's not really obvious how a few (or multiple) reflecting layers are going to stop all that radiated heat.
With no convection possible at all, it must depend on the efficiency of the reflective surfaces and attrition!
Surface 1 reflects 99.9%. Surface 2 receives 0.1% radiated from the back of #1, reflects 99.9% and passes 0.01% (0.00001 of the original?) on to the next layer. Maybe it is that simple.
Presumably the 6 Kelvins is as low as it is worth trying to achieve if deep space is 5K anyway. How would you use any active cooling to get below it? Unless you could somehow transport the energy to a radiator to beam it off into space, whereupon the 5K ambient would warm it back up anyway!
A

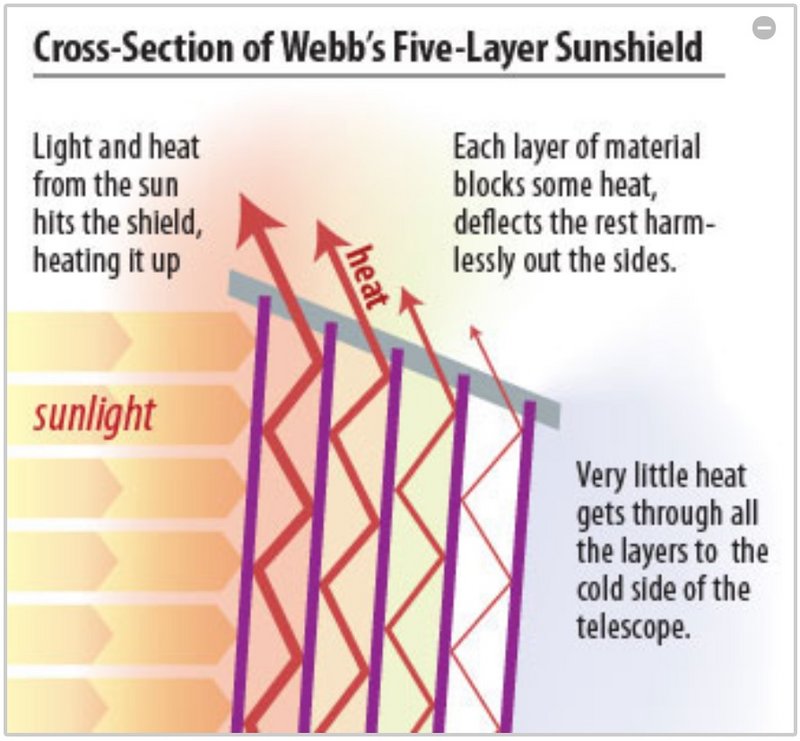

There was a video somewhere showing how the layers worked. If I remember rightly they are also aligned so radiation bounces out side ways from the layers as well.
